Description

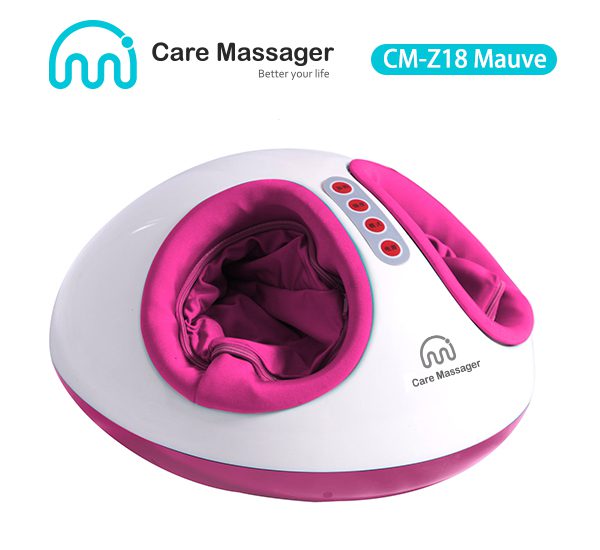

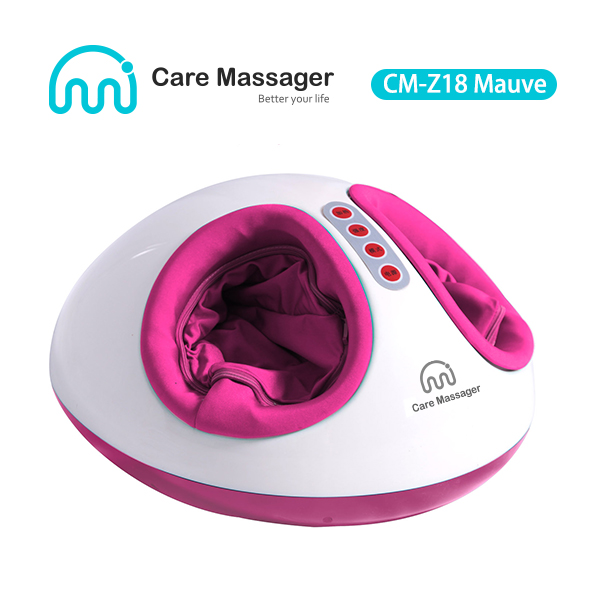

Product Structure

Facade of middle: 4 buttons-control massage functions;
Mid of inner: Scrapping massager-on foot arch, with heating function;
Front of inner: roller-on feet;
.End of inner: kneading massage-on heel;
Under facade: air bags-air press massage on instep;
Bottom surface: Washable cloth cover-cleaning;
Bottom: Power plug;

Features and Schematic Diagram

Features

Egg-shaped, beautiful and fashion, easy to carry;
A variety of functions with rolling, kneading, air-pressing and heating together;
Massage all points in foot;
Washable cloth cover, easy to keep clean;

Schematic diagram

Operating and Function Explanation

Press heating button after power is turned on, to turn off heating function; red light is turning off too.
Press strength button to transfer between strong and weak, blue is weak, red is strong.
Press mode button to transfer between too mode, blue is mode 1, red is mode 2, blue and red is mode 3.

Operation and Function Explanation

Control button:

Heating — Heating Button

Heating function is separately. It is shows red when working, (enabled by default).

Strength — Strength Button

Adjust massage strength, red is strong, blue is weak, the red and blue is middle.

Mode — Mode Button

3 massage for choice, are blue light (closed rolling massage), red (mode 1), double color (model 2).

Power– Power Button

Turn on or Turn off

A. Before Using

Check if it is damaged or not

Check placing position is flat

B. Using

Open harness, one end connect to the bottom of massager, the other bottom connect to the outlet with 220v,5OHz
Operating press power button one time, function working (it show red), strength (it shows blue),mode is mode 1(it show with heating is weak blue).

Operating and Function Explanation

Press heating button after power is turned on, to turn off heating function; red light is turning off too.
Press strength button to transfer between strong and weak, blue is weak, red is strong.
Press mode button to transfer between too mode. Blue is mode 1, red is mode 2, blue and red is mode 3.

Specifications

Name:	Foot massager
Model:	CM-Z18
Rated Voltage:	AC100V-240V
Rated Power:	50W
Time:	15 Min

Troubleshooting

The problem happened when using，solve them according to the following methods. If it is still in trouble, please send to the after sell centre or Authorized maintenance personnel to maintain.

Anomalies

Possible Cause

Approach

Does not work

1. no power

2. power switch is turn off

1. Set up an electric circuit

2. Turn on power switch

Stop working

1. Power outage

2. Massage time is over 15 Min

3. Keep working too long. The massager is overheating.

4. Excessive force, massager rollers cannot afford.

1. Check electric circuit

2. Turn on/off power again

3. Turn on/off the massager after cool.

4. Excessive force，massager rollers cannot afford.

Maintenance

A. Store

When not in using, the product into the box and placed in a safe, cool, ventilated and dry place.
Do not twist the power and wires.
Do not use a switching power supply and wire suspension products
Avoid pointed object scratched the surface.

Do not place in direct sunlight or high humidity place.

B. Cleaning

Turn off and unplug the power cord before cleaning，
Using clean and dry cloth
Do not use a switching power supply and wire suspension products

Note:Do not use corrosive cleaners, benzene or thinner.

C. Maintenance

Keep massager cleaning and keep away from high humidity.
If it is not used for a long time, use a dust cover to prevent dust from entering.
